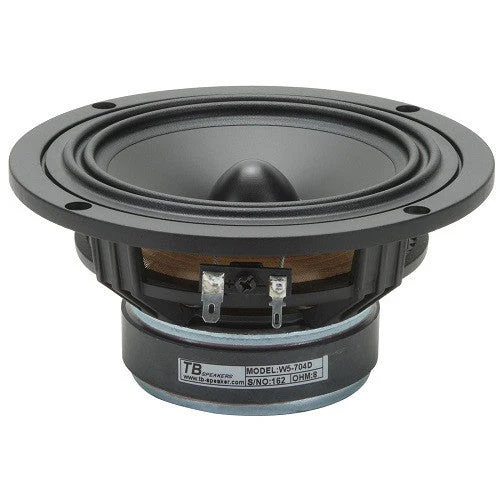

Tang Band W5-704D 5-1/4inch Woofer

Tang Band W5-704D 5-1/4" Woofer

This high-quality poly cone woofer has several unique features including a twin-roll rubber surround, durable aramid spider, and cast aluminum frame. The lightweight poly cone and phasing dustcap provide a smooth frequency response.

Tang Band Woofer Highlights:

• Twin-roll rubber surround
• Durable aramid spider
• Cast aluminum frame

This high-quality poly cone woofer has several unique features including a twin-roll rubber surround, durable aramid spider, and cast aluminum frame. The lightweight poly cone and phasing dustcap provide a smooth frequency response. Great for compact vented two-way designs.

Tang Band Woofer Specifications

• Nominal Diameter : 5-1/4"
• Power Handling (RMS) : 28 Watts
• Power Handling (max) : 56 Watts
• Impedance : 8 ohms
• Frequency Response : 55 to 9,000 Hz
• Sensitivity : 88 dB 1W/1m
• Voice Coil Diameter : 1"

Thiele-Small Parameters

• Resonant Frequency (Fs) : 55 Hz
• DC Resistance (Re) : 6 ohms
• Voice Coil Inductance (Le) : 0.06 mH
• Mechanical Q (Qms) : 2.07
• Electromagnetic Q (Qes) : 0.46
• Total Q (Qts) : 0.38
• Compliance Equivalent Volume (Vas) : 0.41 ft.³
• Mechanical Compliance of Suspension (Cms) : 0.92 mm/N
• BL Product (BL) : 6.17 Tm
• Diaphragm Mass Inc. Airload (Mms) : 7.98g
• Maximum Linear Excursion (Xmax) : 3.3 mm
• Surface Area of Cone (Sd) : 94 cm²

Materials of Construction

• Cone Material : Poly
• Surround Material : Rubber
• Basket / Frame Material : Cast Aluminum
• Magnet Material : Ferrite

Mounting Information

• Overall Outside Diameter : 6.16"
• Baffle Cutout Diameter : 4.875"
• Depth : 2.75"
• # Mounting Holes : 4

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

• Sealed Volume : 0.1 ft.³
• Sealed F : 3127 Hz
• Vented Volume : 0.27 ft.³
• Vented F : 373 Hz.
