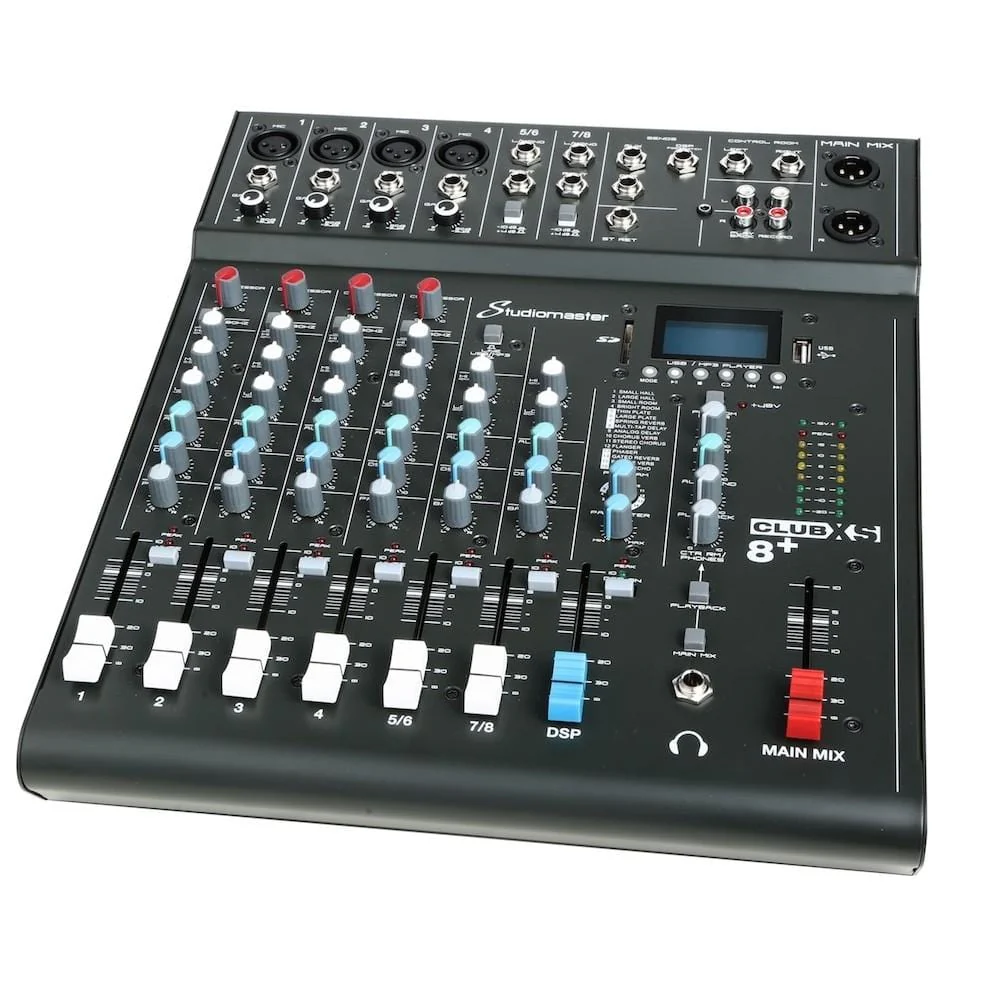

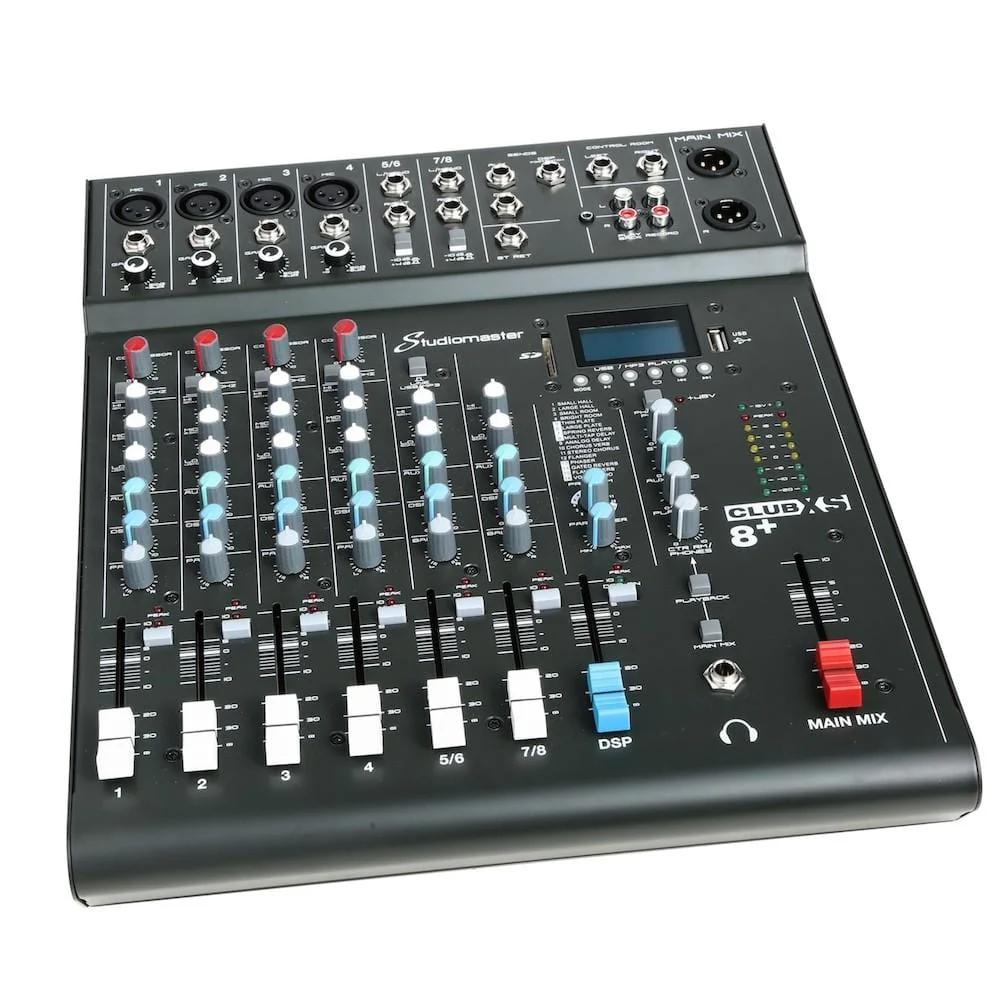

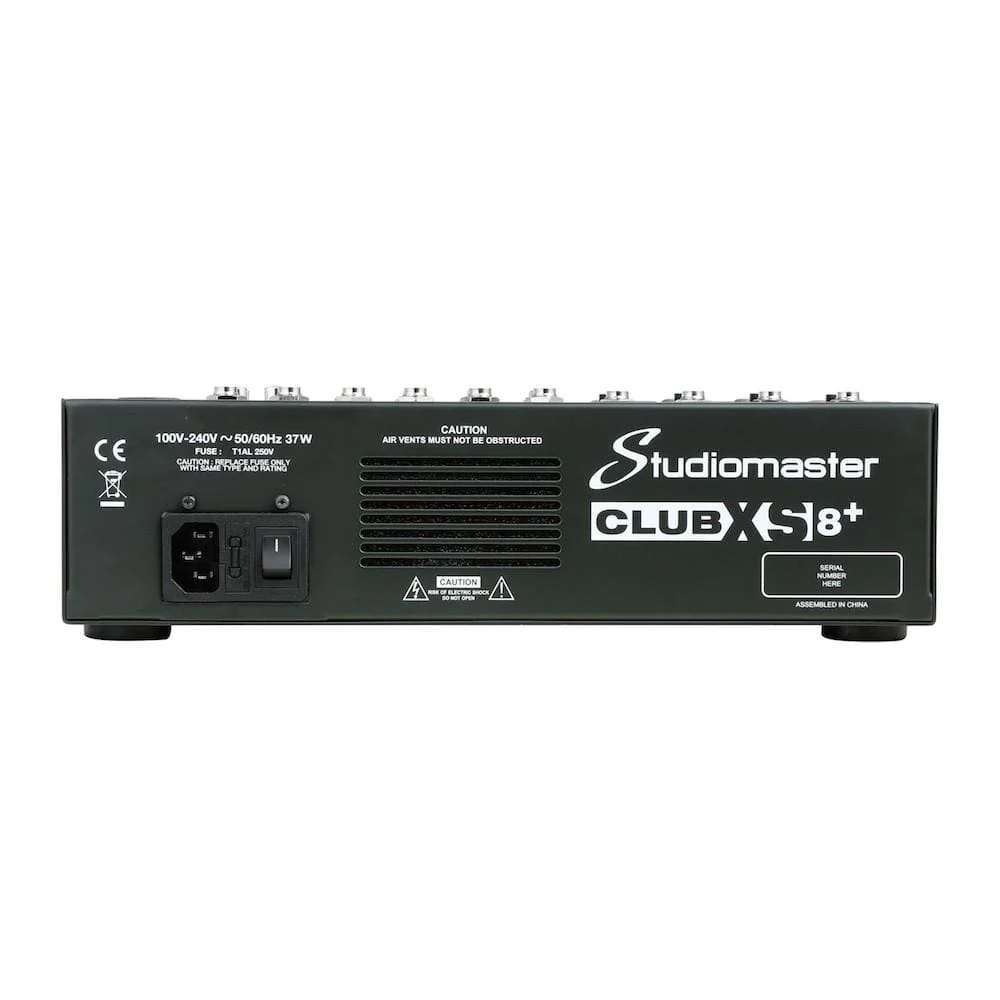

Studiomaster CLUB XS8 Plus 8 Channel Analog Mixer

Studiomaster CLUB XS8 Plus 8 Channel Analog Mixer Overview:

The Club XS+ models incorporate all of the great features of the standard Club range, now with the inclusion of a DSP On/Off foot switch socket and an aesthetic overhaul, redesigned control knobs and finished in Studiomaster digital black.

Features:

• 8 inputs
• 4 mic channels
• 2 stereo channels
• 16 DSP effects
• Bluetooth
• USB/SD media player
• Footswitch socket

Specifications:

• Inputs: 8
• Mic Inputs: 4
• Stereo Inputs: 2
• Mic Gain Range: 6dB to 50dB
• Line Gain Range: 10dB to 34dB
• EIN:  -100dB
• Frequency Responce: 10Hz – 20kHz (+1/-3dB)
• THD Mic Channel: <0.1%
• Signal to Noise Ratio: 80dB
• Output Levels: Max +26dB (Bal), +20dB (unBal)
• EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
• USB/SD: MP3 Audio playback
• Record: To USB drive or SD card (128kbps mono)
• DSP Effects: 16 DSP effects
• Power Requirements: 100V – 240V ~
• Dimension W*H*D: 305 x 80 x 365 (mm)
• Weight: 4.5kg

Made in China
