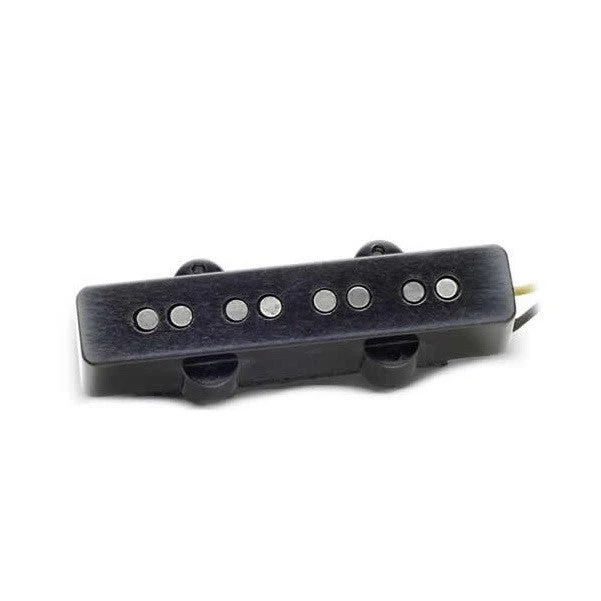

Seymour Duncan Antiquity II Jive Jazz Bass Bridge Pickup - 1044-06
The Jazz Bass pickup is made to the specifications of the mid '60s production instruments and is very similar to the pickups I re-wound for Jaco back in the early '80s. The pickup is wound for the right amount of output and brightness without being too muddy or thin.
Features:
Features:
- top pickup length: 3.492
- top pickup width: .628
- bottom pickup length: 3.492 neck, 3.625 bridge
- bottom pickup width: .628
- total pickup height: .695
- total magnet height: .780
- winding direction: top going neck, top coming bridge
- magnet polarity: north neck, south bridge
- calibrated: yes
- pickup cover length: 3.602 neck, 3.715 bridge
- pickup cover width: .718
- pickup cover height: .750
- height adjustment: screwed into body cavity
- magnet pattern: raised top and bottom
- DC Ohms: 8.97K
- inductance: 4.25 henries
- Q: 2.79 neck, 2.64 bridge.
$26.13
Original: $87.09
-70%Seymour Duncan Antiquity II Jive Jazz Bass Bridge Pickup - 1044-06—
$87.09
$26.13Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Jazz Bass pickup is made to the specifications of the mid '60s production instruments and is very similar to the pickups I re-wound for Jaco back in the early '80s. The pickup is wound for the right amount of output and brightness without being too muddy or thin.
Features:
Features:
- top pickup length: 3.492
- top pickup width: .628
- bottom pickup length: 3.492 neck, 3.625 bridge
- bottom pickup width: .628
- total pickup height: .695
- total magnet height: .780
- winding direction: top going neck, top coming bridge
- magnet polarity: north neck, south bridge
- calibrated: yes
- pickup cover length: 3.602 neck, 3.715 bridge
- pickup cover width: .718
- pickup cover height: .750
- height adjustment: screwed into body cavity
- magnet pattern: raised top and bottom
- DC Ohms: 8.97K
- inductance: 4.25 henries
- Q: 2.79 neck, 2.64 bridge.
