RODE MP5 Matched Pair Diaphragm Condenser Microphones

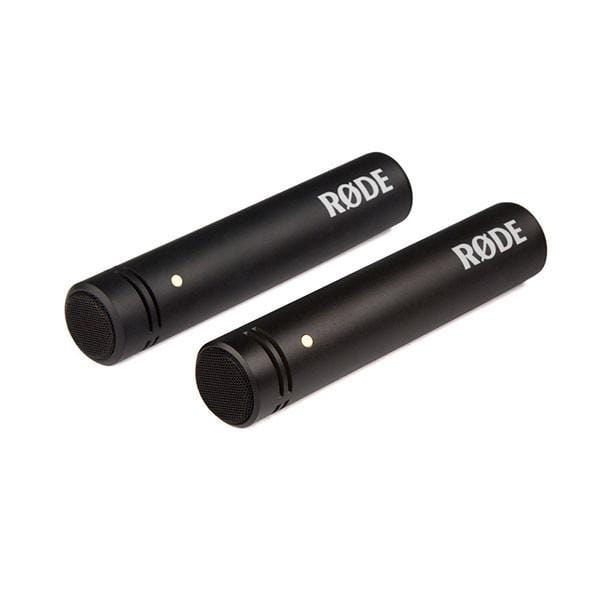

Designed and made in Australia, the M5 is a compact ½” cardioid condenser microphone with low noise and a full frequency response. A result of many years’ experience building the award-winning NT5 microphone, RØDE has succeeded in making a high-quality ‘pencil’ style permanently polarized condenser that will impress even the most demanding of artists and engineers. Ideal for studio recording and live on stage, the M5 is equally at home on a range of acoustic instruments, choirs, or anywhere you would employ a small diaphragm condenser microphone, either individually or as a stereo array. This matched pair has been carefully selected to ensure a variation of no more than 1dB sensitivity between the microphones. A premium foiled certificate is supplied to verify the authenticity of the pair. The M5 is finished with RØDE’s proprietary ceramic coating which offers a sleek matt black finish, and is supplied with WS5 windshields and RM5 stand mounts.

Features:

• ½” capsule with gold-plated membrane
• Cardioid polar pattern
• All metal body
• Ultra-low noise transformerless circuitry
• State-of-the-art surface mount electronics
• Heavy-duty matte black fi nish
• Gold plated output connectors
• Includes microphone clips and windshields
• Designed & manufactured in Australia

Specification:

Acoustic Principle	Pressure Gradient
Active Electronics	JFET impedance converter with bipolar output buffer
Capsule	0.50"
Polar Pattern	Cardioid
Address Type	End
Frequency Range	20Hz - 20kHz
Output Impedance	200Ω
Maximum SPL	140dB SPL (@ 1kHz, 1% THD into 1KΩ load)
Maximum Output Level	13.5dBu (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity	-34.0dB re 1 Volt/Pascal (10.46mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-weighted)	19dB-A
Power Options	24 or 48 volt phantom power
Weight	80.00gm
Dimensions	100.00mmH x 20.00mmW x 20.00mmD
Output	XLR
