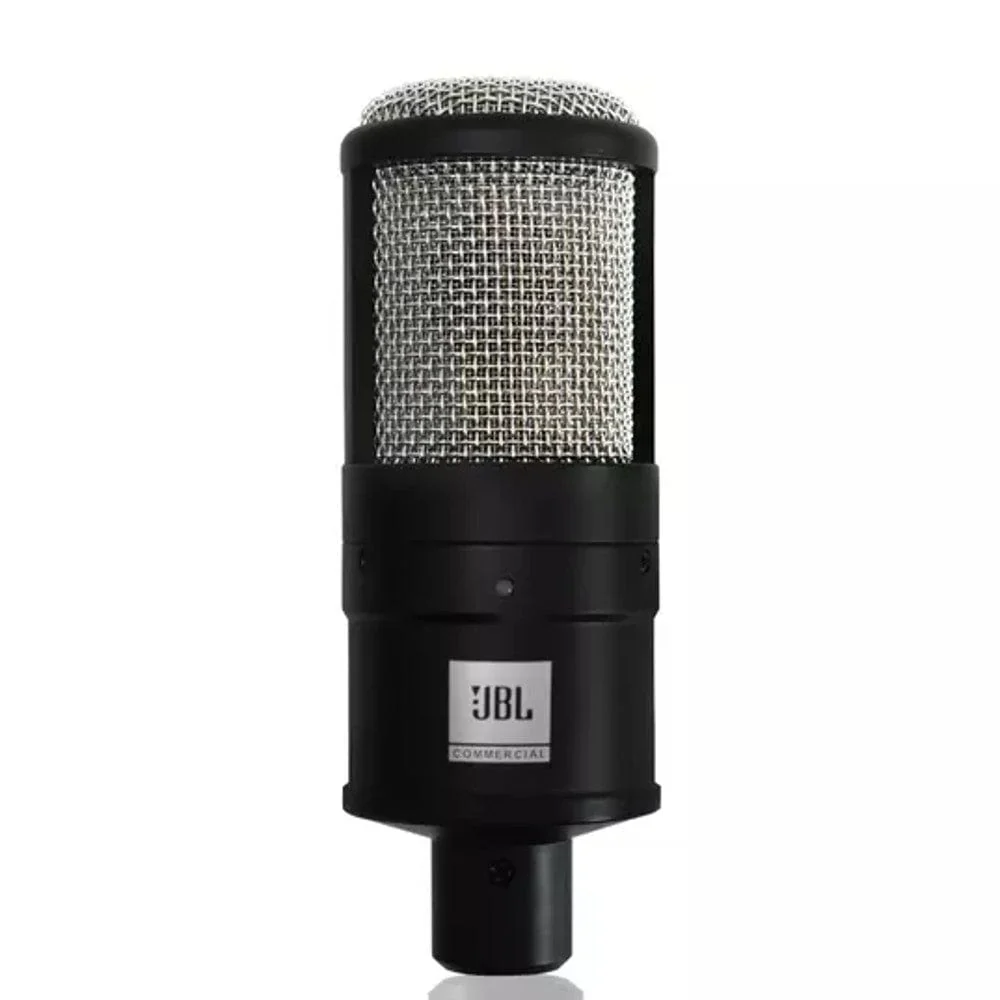

JBL CSSM100 Studio Condenser Microphone
JBL CSSM100 Studio Condenser Microphone Overview:
JBL Commercial CSSM100 Studio Condenser Microphone is a general purpose Condenser Microphone that is ideal for Recording & On-Stage purposes. It can be used to record, both, vocals and instruments. With features like rugged metal body, hypercardioid pickup pattern, and a wide frequency response, you will #SoundYourBest with the CSSM100. The microphone uses a condenser capsule designed for 48-volt phantom powering & needs an external power supply.
Specification
- Transducer: 14mm Condenser Capsule
- Polar Pattern: HyperCardioid
- Frequency Response: 20Hz – 20KHz
- Sensitivity: -36dBV ±3dB (0dB=1V/Pa at 1KHz)
- Equivalent Noise Level: ≤24dBA
- Peak SPL: 110dB (THD≤ 1% at 1KHz)
- Electrical Impedance: 100Ω
- Temperature Range: -40 – 55° C
- Phantom Powering: +48V ±4V
- Current Consumption: 3 mA
Dimensions
- Dia. 54mm: Yes
- Length 148mm: Yes
- Net Weight: 383g
