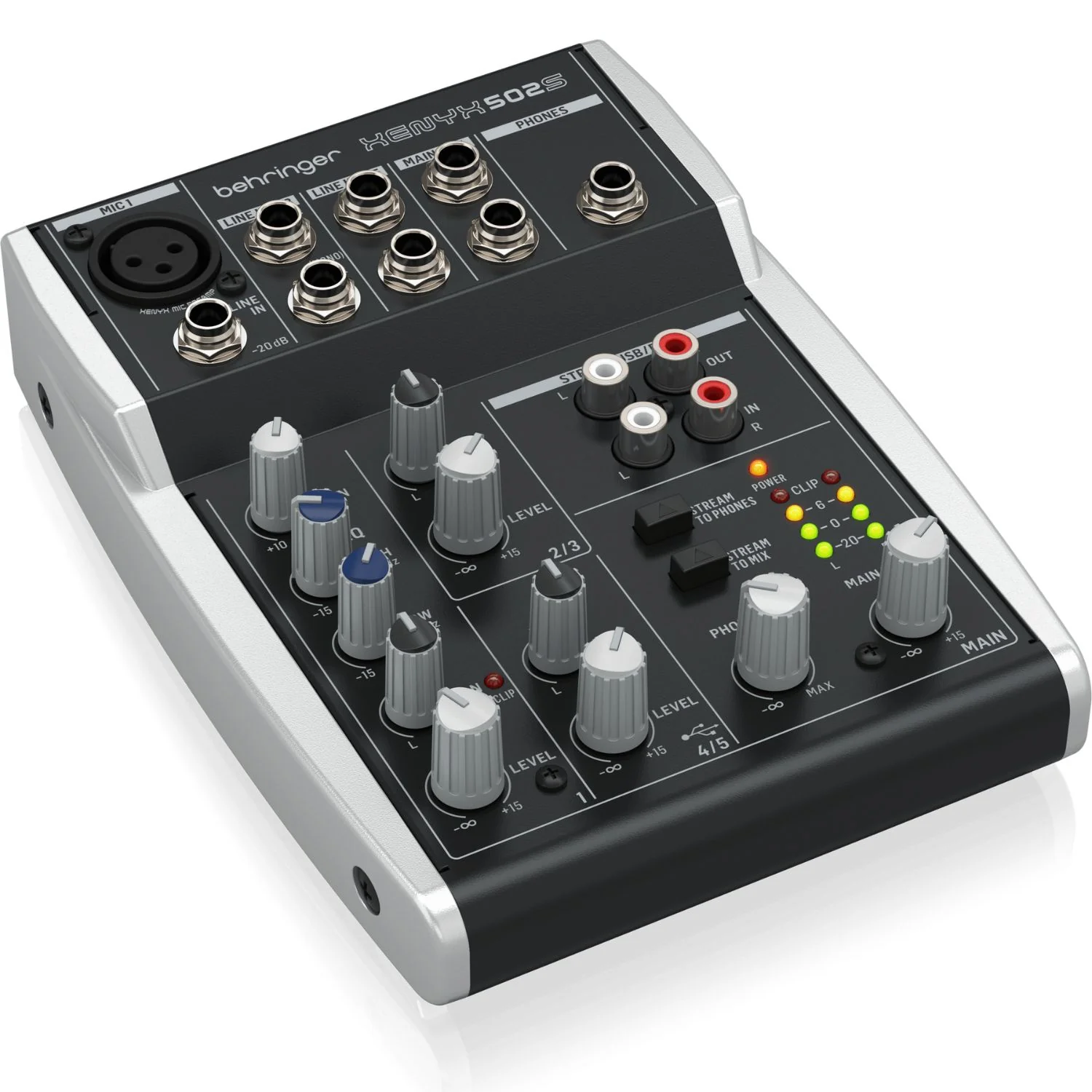

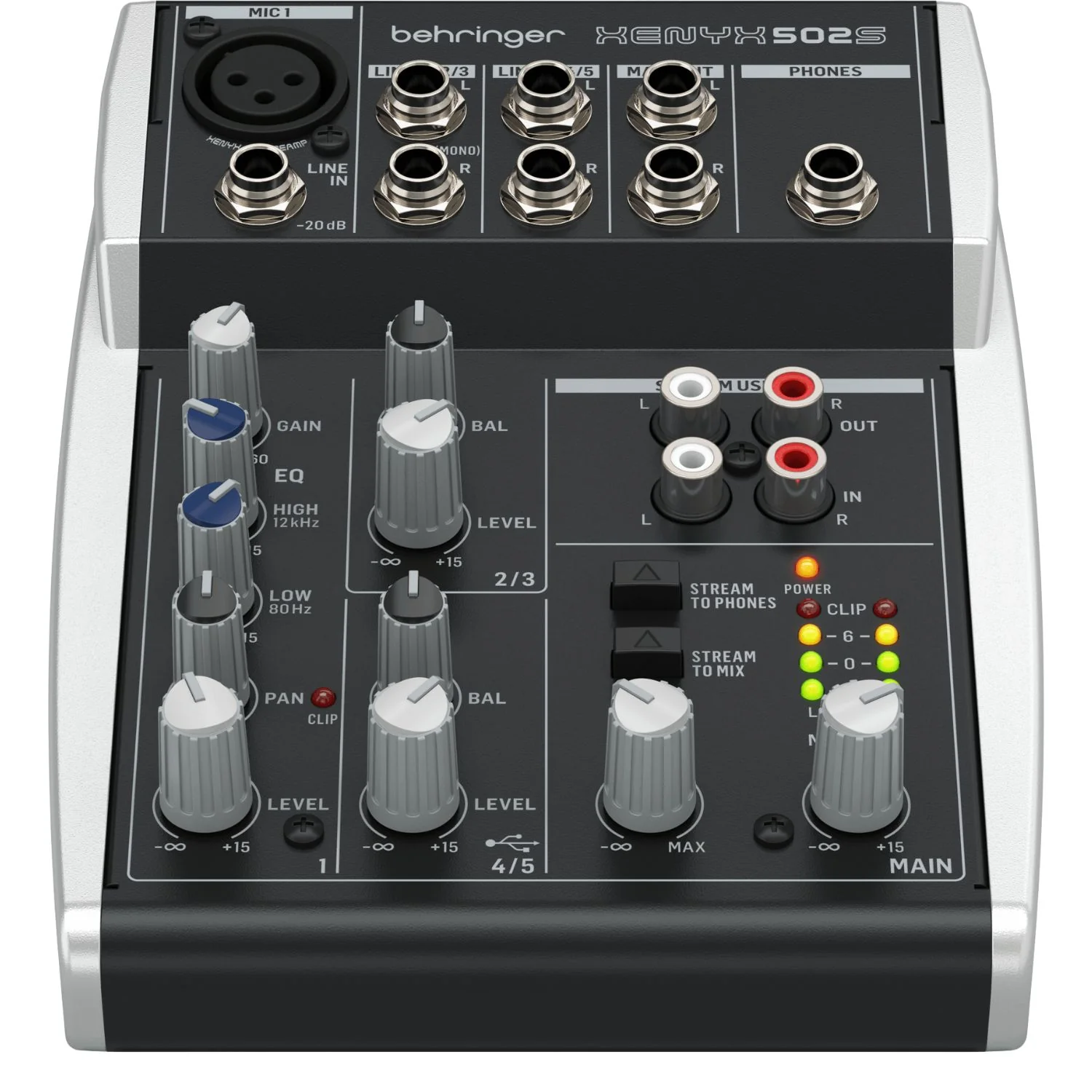

Behringer XENYX 502S Premium Analog 5-Input Mixer with USB Streaming Interface

Behringer XENYX 502S Premium Analog 5-Input Mixer with USB Streaming Interface

The ultra-compact XENYX 502S mixer’s 5 inputs allow you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting and recording. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamp.

Product Features:

• Ultra-low noise analog mixer for streaming, podcasting and recording
• Award winning XENYX microphone preamp for warm and musical sound
• Stereo USB audio interface to connect to your computer or mobile device
• Direct mixing of PC/gaming sounds into the streaming output
• Analog mixing and equalization for pure sound
• Versatile sub mixer for network enabled audio devices
• Stereo channel 4/5 automatically switches between TRS input and USB playback
• High-quality main, phones and streaming outputs
• Stereo RCA inputs assignable to main mix or monitor/phones outputs

Great for Any Setup
The new XENYX “S” series can be connected to computers or mobile devices via USB making it super easy to integrate digital sources with analog equipment. One mono and 2 stereo channels allow you to mix up to 5 signals, blending them to a stereo RCA streaming input and a stereo USB input. That is a total of 9 crystal-clear audio signals for monitoring via headphones or the high-quality TRS Main outputs. The 502S can also be used as a versatile sub mixer for combining network enabled audio devices with other analog signals.

Amazing Gear at an Affordable Price
The XENYX 502S is a great partner for any dynamic microphone, upgrading your streaming, podcasting or recording setup with a decent microphone input, while simultaneously providing simple, super-convenient control at your fingertips.

Specification:
Mono Inputs
Microphone Input

• Balanced XLR, discrete input circuit
• Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted
• Frequency response Gain +10 dB: 10 Hz to 150 kHz
• Frequency response Gain +60 dB: 20 Hz to 70 kHz
• Gain range: +10 dB to +60 dB
• Max input level @ +10 dB Gain: +12 dBu
• Input Impedance: 2 kΩ balanced
• Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%

Mono Line Inputs

• 1/4" TRS connector balanced
• Imped\n
• Impedance: 22 kΩ balanced, 10 kΩ unbalanced
• \n
• Gain range: -10 dB to +40 dB
• \n
• Max input level @ 0 dB Gain: +21 dBu
• \n

\n

Stereo Inputs
Stereo Line

\n

• \n
• 1/4" TRS connector balanced
• Frequency response: 20 Hz to 200 kHz
• Impedance: 22 kΩ balanced, 10 kΩ unbalanced
• Max input level @ 0 dB Gain: +21 dBu

STREAM Inputs (Analog)

• RCA connector unbalanced
• Impedance: 10 kΩ unbalanced
• Max input level: 10 dBu

EQUALIZER

• Low: 80 Hz/±15 dB
• High: 12 kHz/±15 dB

Main, Monitor & FX Send Outputs

• Type: 1/4" TRS connector impedance-balanced
• \n
• Impedance: 120 Ω
• \n
• Max output level: 21 dBu
• \n

\n

Phones Out

\n

• \n
• Type: 1/4" TRS connector unbalanced
• Impedance: 23 Ω
• Max output leve: 19 dBu/150 Ω

STREAM out (Analog)

• Type:RCA connector unbalanced
• Impedance: 1 kΩ unbalanced
• Max output level: 10 dBu

Main Mix noise

• Main Mix @ -∞" -109 dBu A-weighted
• \n
• Channel @ -∞" -109 dBu A-weighted

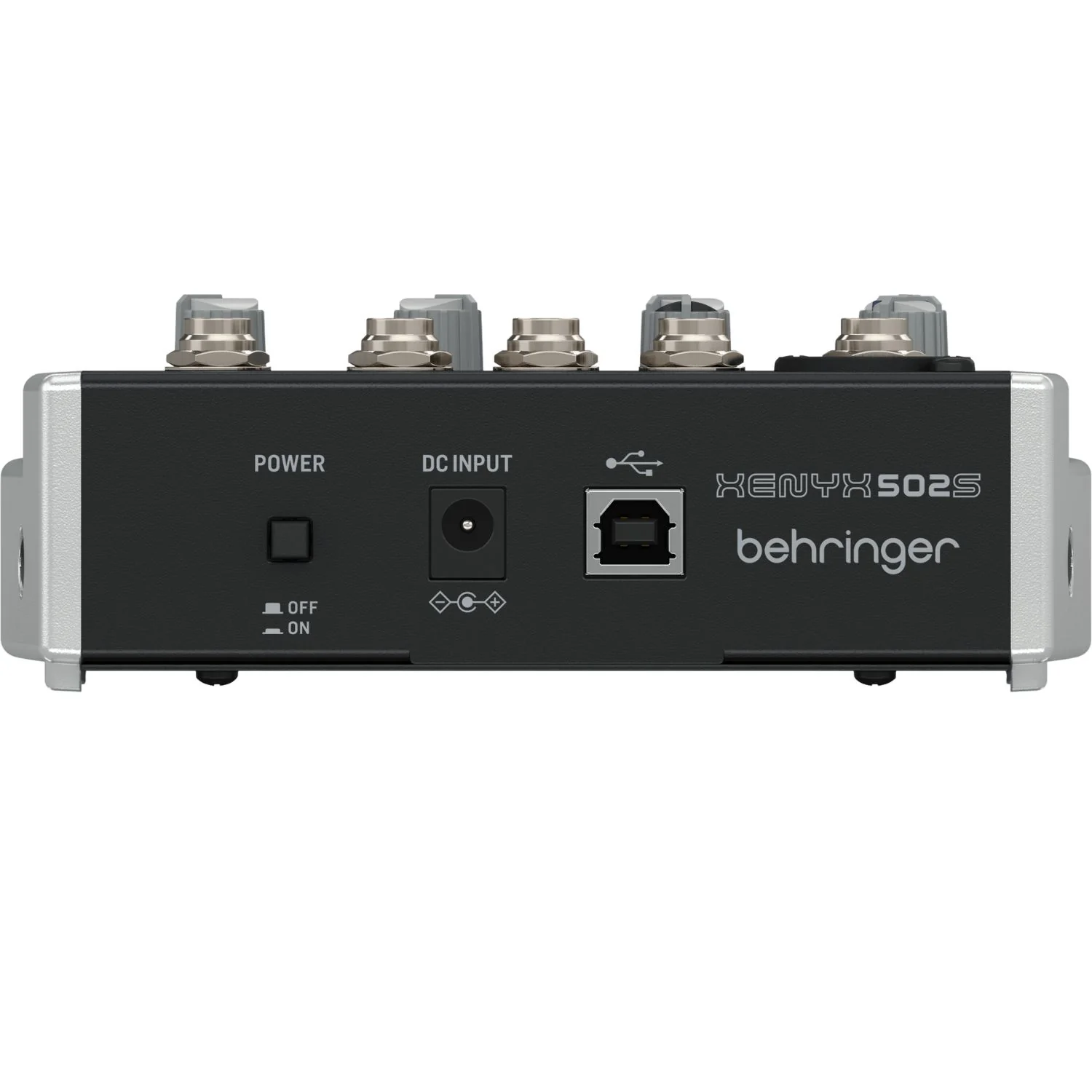

USB

• Type: Type-B connector
• USB Audio Data: 48 kHz 16 bit
• UAC2 Class Compliant: stereo in/out

Power Supply

• Power Consumption: 8 W
• Adaptor input: 100 - 240 V~, 50/60 Hz, 0.5 A
• Adaptor output: 18 V DC 1.0 A
